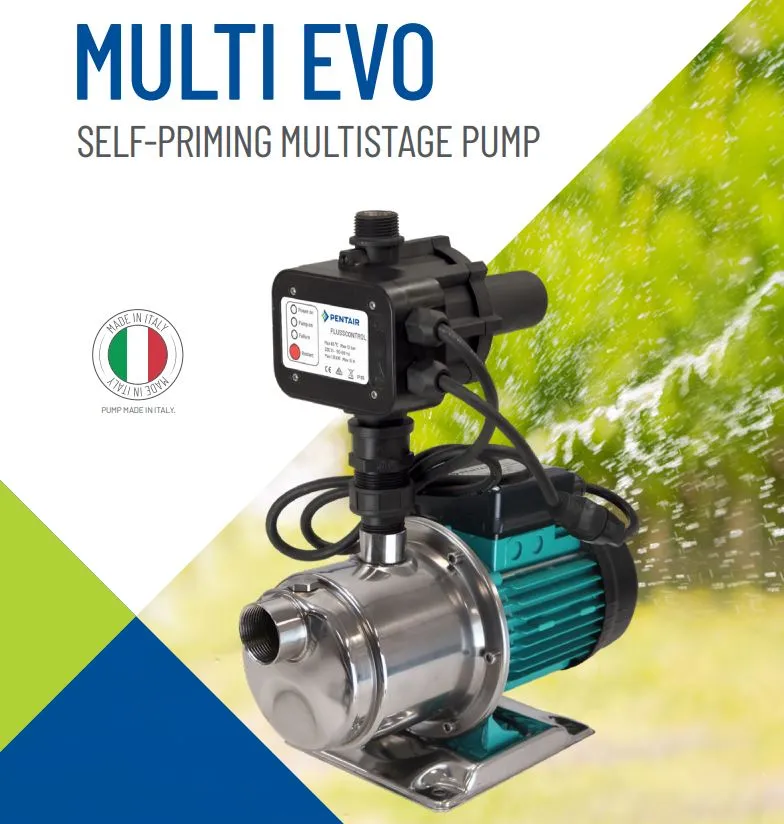

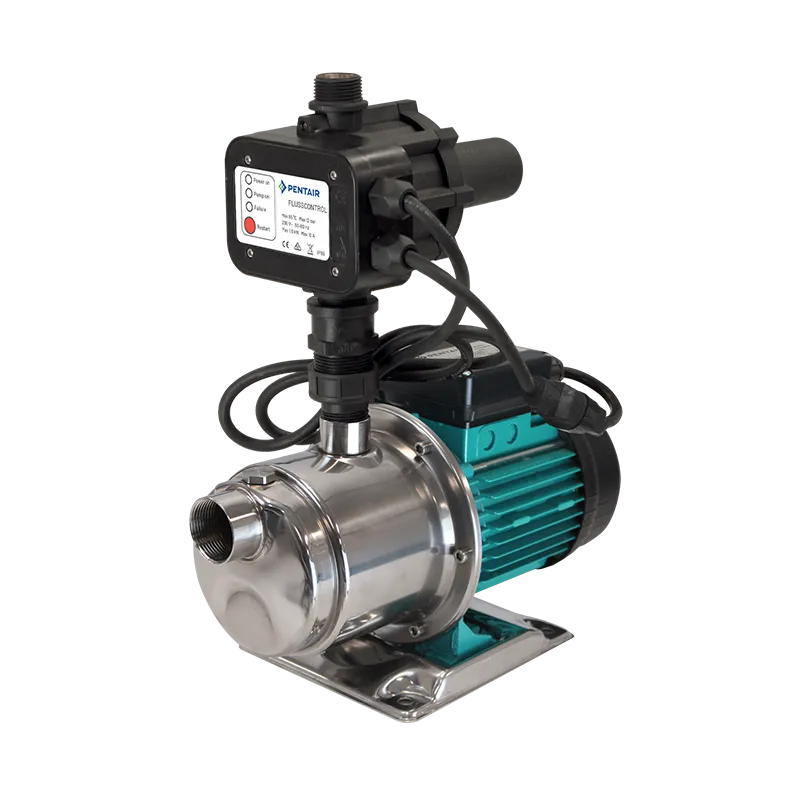

Onga Multievo 5 Series Self Priming Horizontal Multistage Pressure Pumps with Pressure Manager (Max 120LPM/715kPa)

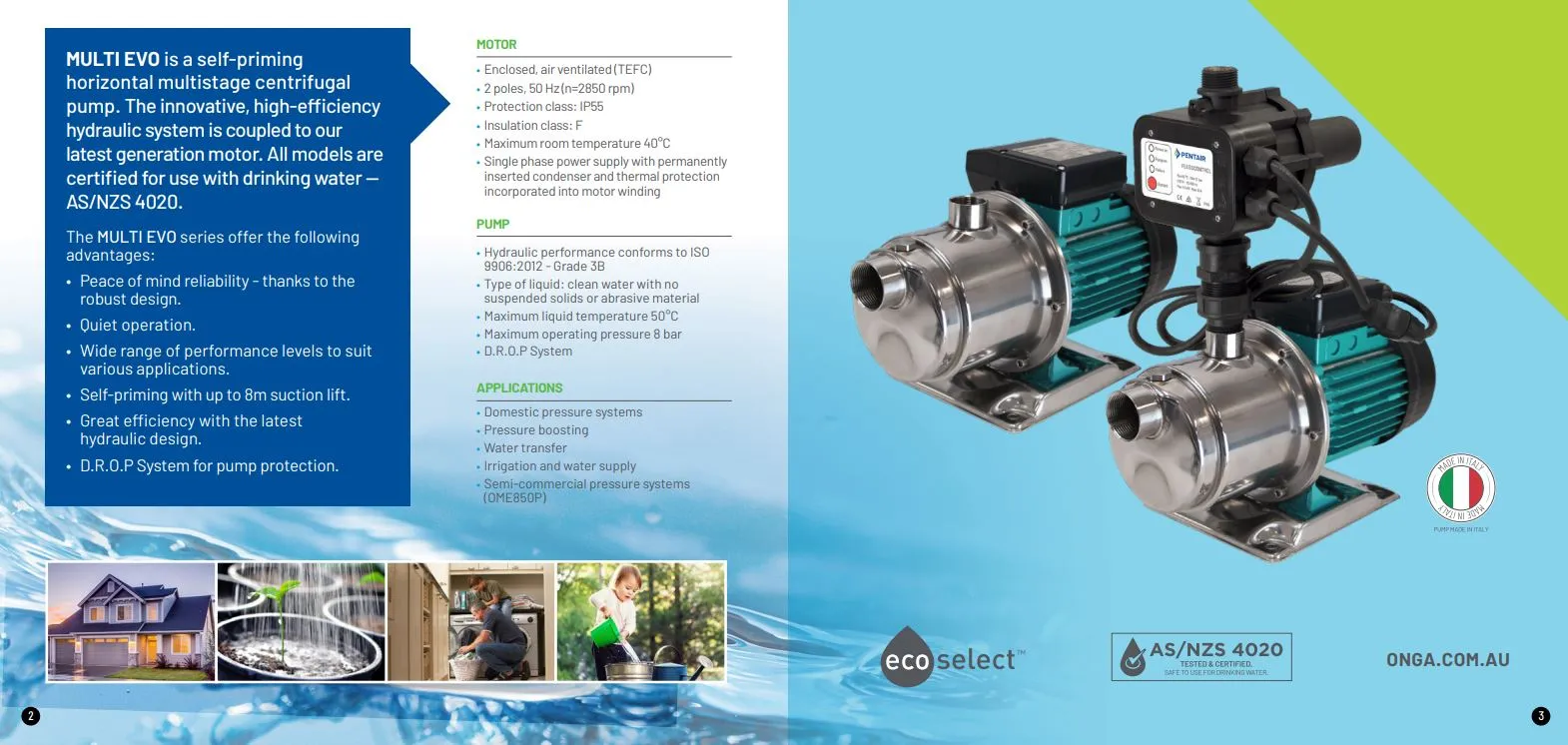

MULTI EVO is a self-priming horizontal multistage centrifugal pump. The innovative, high-efficiency hydraulic system is coupled to our latest generation motor. All models are certified for use with drinking water AS/NZS 4020.
ADVANTAGES:
- Peace of mind reliability - thanks to the robust design.
- Quiet operation.
- Wide range of performance levels to suit various applications.
- Self-priming with up to 8m suction lift.
- Great efficiency with the latest hydraulic design.
- D.R.O.P System for pump protection.
MOTOR:
- Enclosed, air ventilated (TEFC)
- 2 poles, 50 Hz (n=2850 rpm)
- Protection class: IP55
- Insulation class: F
- Maximum room temperature 40°C
- Single phase power supply with permanently inserted condenser and thermal protection incorporated into motor winding
PUMP:

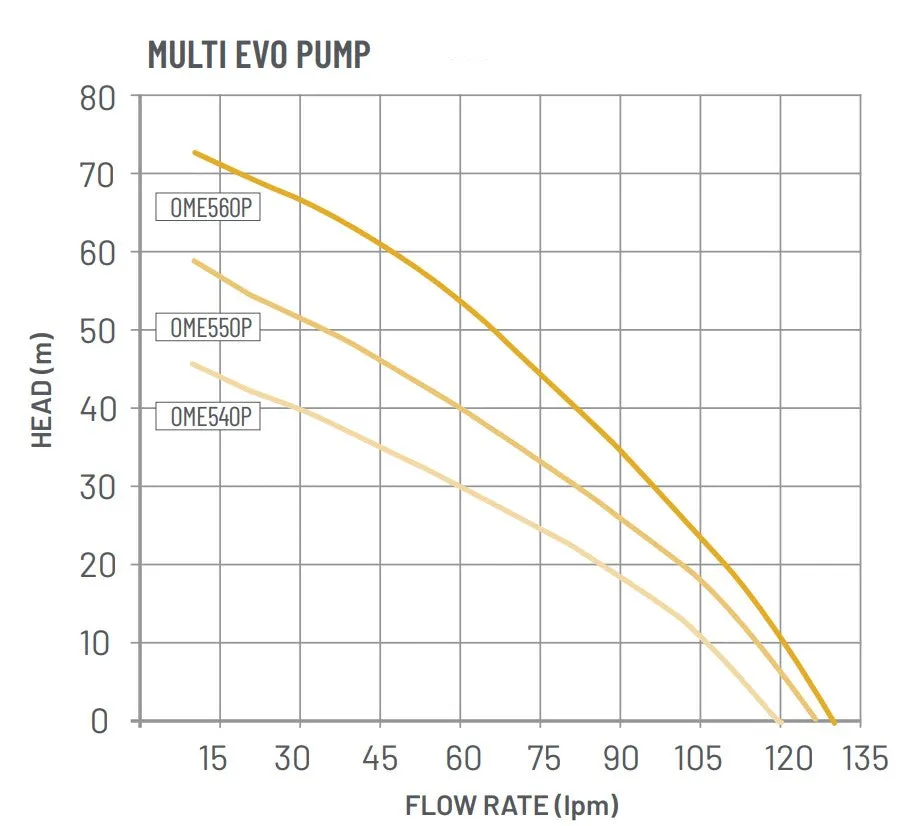

- Hydraulic performance conforms to ISO 9906:2012 - Grade 3B
- Type of liquid: clean water with no suspended solids or abrasive material
- Maximum liquid temperature 50°C
- Maximum operating pressure 8 bar
- D.R.O.P System
APPLICATIONS:
- Domestic pressure systems
- Pressure boosting
- Water transfer
- Irrigation and water supply
- Semi-commercial pressure systems (OME850P)
