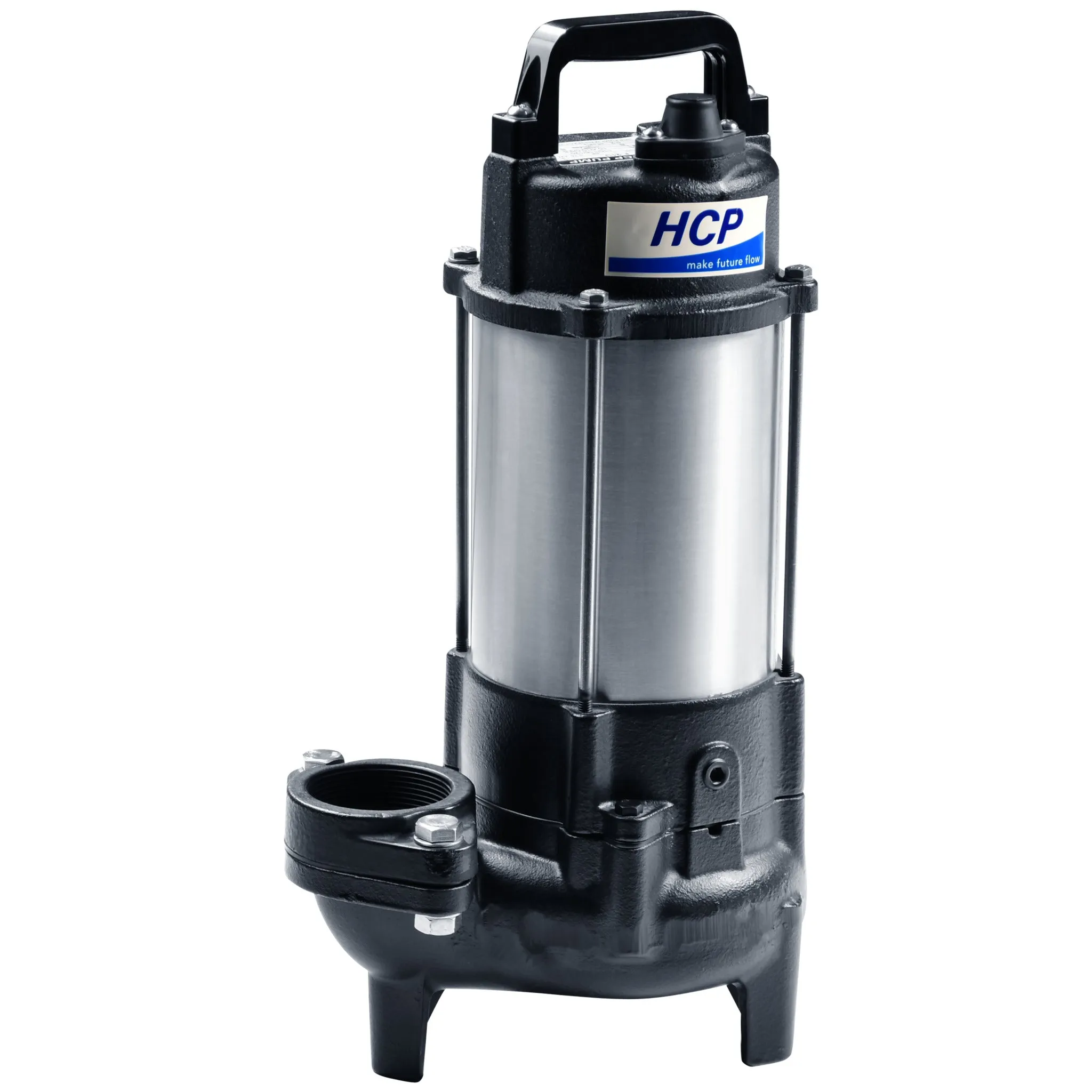

HCP Model F-05U Submersible Effluent Pump: Reliable and Efficient Pumping
The HCP Model F-05U Submersible Effluent Pump is versatile and reliable, ideal for effluent pumping, low-pressure sewer applications, and general dewatering of basements and tanks with limited solids. This commercial-quality dual seal pump features a carbon/ceramic upper side and silicon carbide lower side seal in an oil-filled chamber with food-grade oil. The upper cover, volute, and impeller are made with durable cast iron, while the motor frame is constructed with robust 304 stainless steel.
Key Features: Reliable and Efficient
- Versatile Applications: Suitable for effluent pumping, low-pressure sewer applications, and general dewatering.
- Durable Seals: Carbon/ceramic upper side and silicon carbide lower side seal in an oil-filled chamber with food-grade oil ensure long-lasting performance.
- Sturdy Construction: Upper cover, volute, and impeller made with cast iron; motor frame constructed with 304 stainless steel.
- Thermal Protection: The motor is equipped with a built-in thermal protector to prevent pump overheating.
- An optional piggyback float switch can automatically control the pump's on/off function based on water levels.
- Compact Design: Measures 10" x 6" x 17" tall and weighs 42 lbs.
- High Capacity: 2 Inch FPT discharge, handles 1-3/8" solids.
- Powerful Motor: 1/2 HP, 120V, 6.2A, 3400 RPM with a 30' cable length.

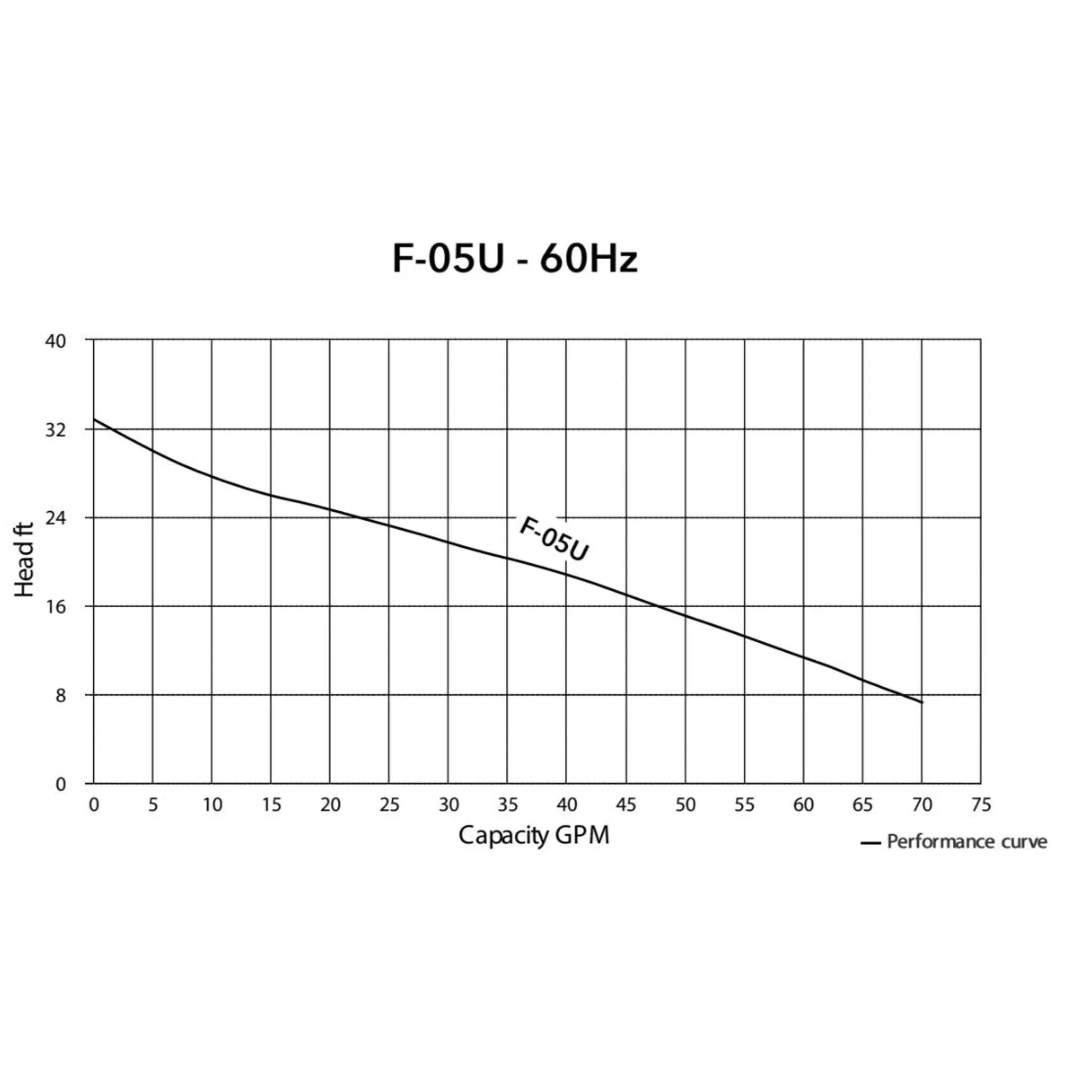

- High Performance: Maximum flow of 70 GPM @ 7' head and maximum head of 31 feet.
- Certified: cUL and CSA certified for quality and safety.
Elevate Your Pumping Efficiency
Upgrade your effluent and dewatering systems with the HCP Model F-05U Submersible Effluent Pump. Designed for durability and efficiency, this pump ensures smooth operation in various applications. With its built-in thermal protector and optional float switch, you can trust this pump to provide continuous, reliable service in demanding environments.
