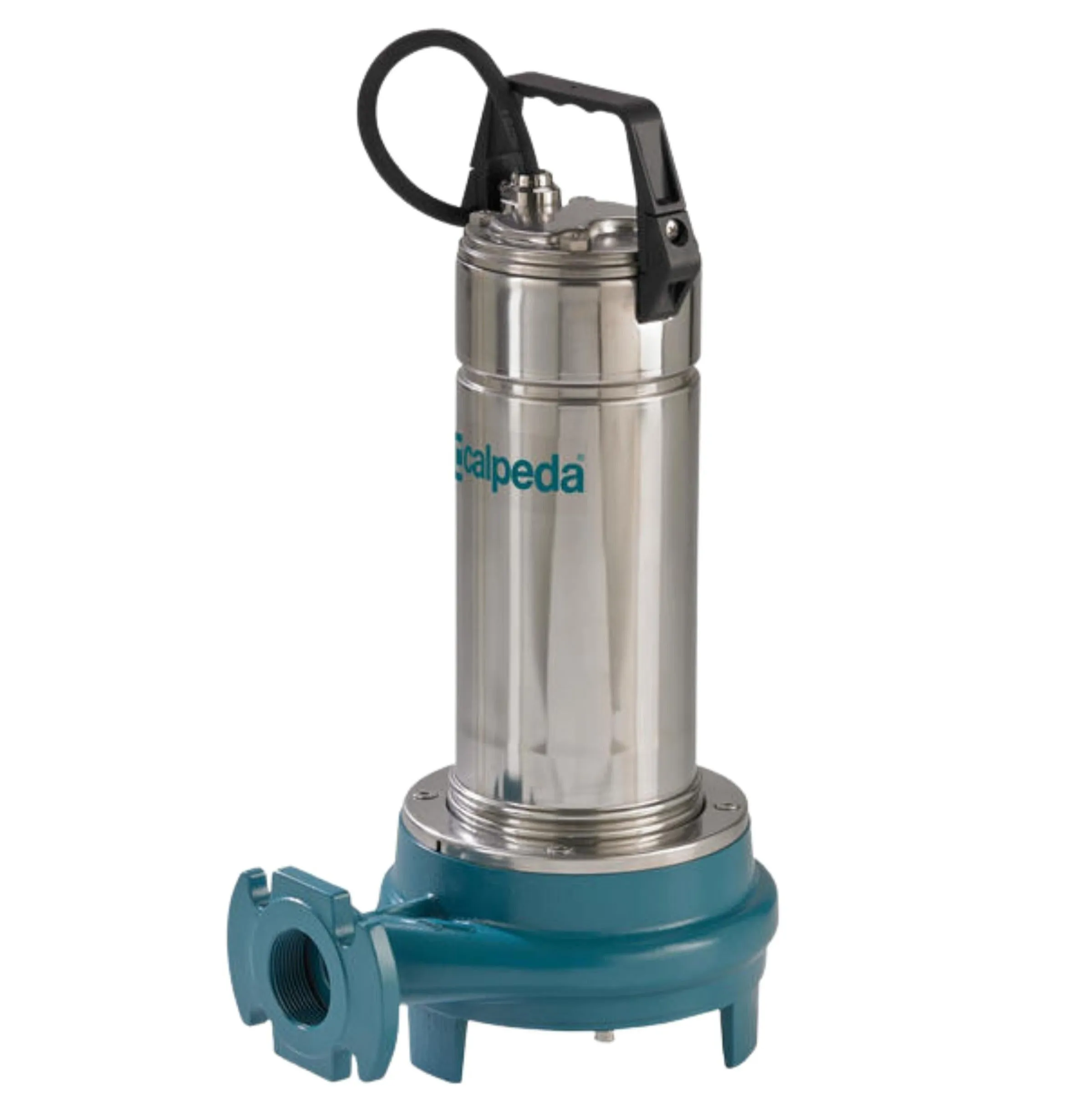

Calpeda GQG 6-25 Submersible Pump With High-Power Grinder 1.50kW - 2.00 HP - Three Phase

Construction

Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port (DN 32 – G 1 1/2”). Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Application

• Suitable for pumping waste water containing long filamentous, paper and textile materials and organics
• They are particularly suitable for use in domestic, residential and industrial installations
• Solid passage 6 mm

Operating conditions

• Liquid temperature up to 35° C.
• Maximum immersion depth: 5 m.
• Minimum immersion depth: 300 mm.
• Continuous duty (with submerged motor).
